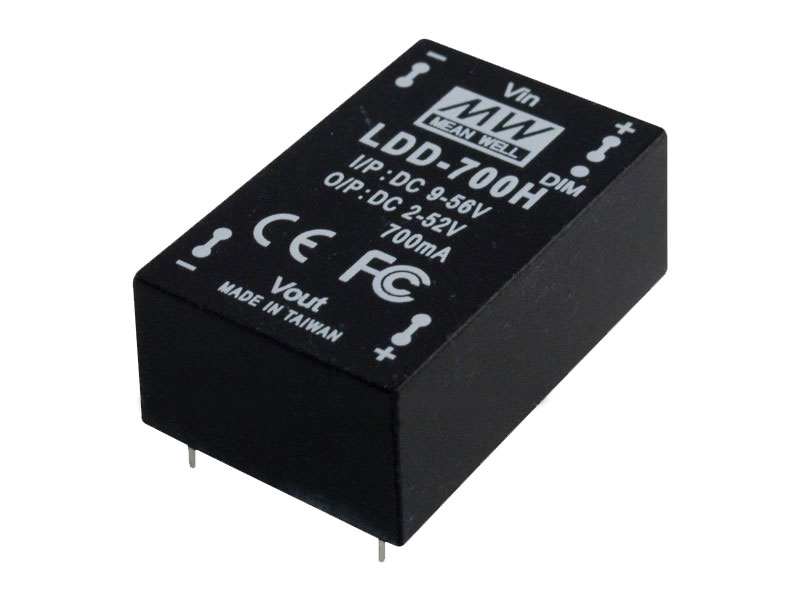

Mean Well LDD-700H

Description

OUTPUT:

– CURRENT RANGE = 700mA
– VOLTAGE RANGE = 2 ~ 52VDC
– CURRENT ACCURACY (Typ.) = ±3% at 24VDC input ; ±4% at 48VDC input
– RIPPLE & NOISE(max.) = 200mVp-p
– SWITCHING FREQENCY= 40KHz ~ 1000KHz
– EXTERNAL CAPACITANCE LOAD (max.) = 2.2uF

INPUT:

– VOLTAGE RANGE = 9 ~ 56VDC
– EFFICIENCY (max.) = 97% at full load and 36VDC/48VDC input
– DC CURRENT = Full load 650mA / No load 5mA
– FILTER = Capacitor

PWM DIMMING & ON/OFF CONTROL:

– REMOTE ON/OFF = Leave open if not use; Power ON with dimming: DIM ~ -Vin >2.5 ~ 6VDC or open circuit; Power OFF : DIM ~ -Vin < 0.8VDC or short
– PWM FREQUENCY = 100 ~ 1KHz
– QUIESCENT INPUT IN SHUTDOWN MODE(max.) = 1mA at PWM dimming OFF and 24VDC input

Downloads:

– Full specs
